Product Details:
|
| Material: | PE100 | Color: | Black |
|---|---|---|---|
| Application: | Gas Pipeline | Welding Mode: | Electrofusion Butt Fusion |
| Size: | DN63 - DN355 | SDR Value: | SDR11 |
| High Light: | DN63 PE100 Plastic Ball Valve,DN355 PE Plastic Ball Valve,PE100 Double Discharge Ball Valve |
||

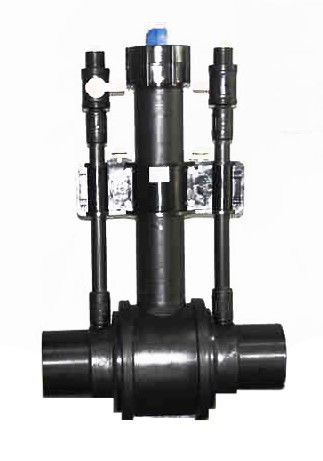

PE100 DOUBLE DISCHARGE BALL VALVE DN63 - DN355 PE BALL VALVE SDR11
Ball valve standard EN 1555.4/ ISO4437.4;
The ball valve has a compact structure, inside channels of ball valve is the same with inside diameter of fittings, which is called as full bore ball valve;
No need anti-corrosion treatment and there are limiting device for opening and closing.
| dn mm | A mm | B mm | C mm | D mm | E mm |
| 63 | 620 |
72
|
515 | 415 | 320 |
| 90 | 750 | 100 | 580 | 415 | 320 |
| 110 | 755 | 110 | 585 | 415 | 320 |
| 160 | 795 | 155 | 720 | 485 | 390 |
| 200 | 1020 | 185 | 790 | 500 | 405 |
| 250 | 1050 | 220 | 810 | 560 | 465 |
| 315 | 1110 | 270 | 990 | 655 | 560 |
| 355 | 1110 | 270 | 990 | 655 | 560 |
