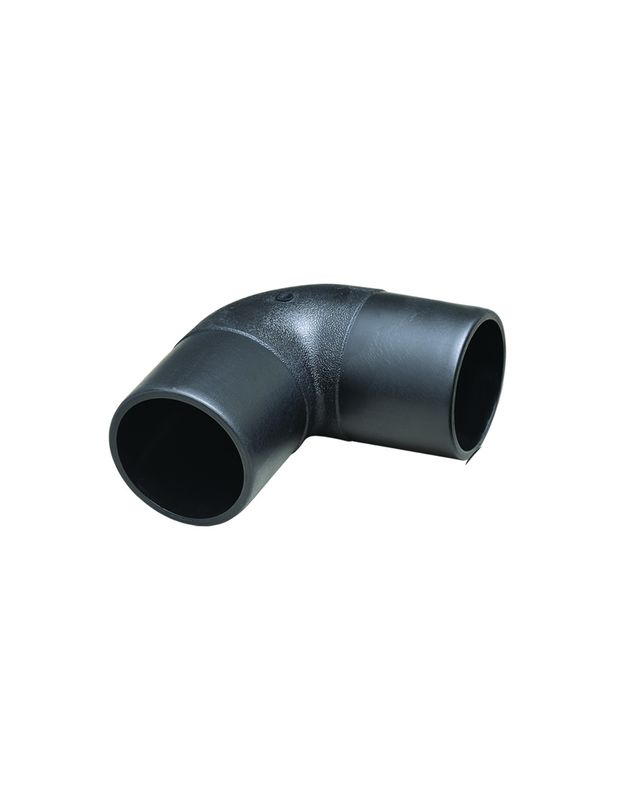

DN63-DN450 SDR11 SDR17 SDR17.6 PE Butt Fusion 90 Degree Elbow

DN63-DN450 SDR11 SDR17 SDR17.6 PE Butt Fusion 90 Degree Elbow
DN63-DN450 SDR11 SDR17 SDR17.6 PE Butt Fusion 90 Degree Elbow

Large Image :  DN63-DN450 SDR11 SDR17 SDR17.6 PE Butt Fusion 90 Degree Elbow

Product Details:
Place of Origin: CHINA
Brand Name: LUTONG
Certification: BSI
Model Number: DN63-DN400
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIATION
Price: NEGOTIATION
Packaging Details: CARTON
Delivery Time: NEGOTIATION
Payment Terms: NEGOTIATION
Supply Ability: 10000 PER MONTH
Contact Now

DN63-DN450 SDR11 SDR17 SDR17.6 PE Butt Fusion 90 Degree Elbow

Description
Material: PE80, PE100, MDPE, HDPE Color: Balck, Orange
Application: Gas Pipe, Water Pipe Welding Mode: Butt Fusion
Size: DN63 - DN450 SDR Value: SDR11, SDR17, SDR17.6
High Light:

DN63 90 Degree Elbow

,

DN450 90 Degree Elbow

,

SDR17.6 PE 90 Degree Elbow

  • PE BUTT FUSION ELBOW 90 DEGREE DN63 - DN450 PE FUSION FITTINGS SDR11, SDR17, SDR17.6
  •
  • PE Elbow 90 degree standard EN 1555.3/ EN12201.3/ ISO8085/ ISO4427.3;
  • PE100 SDR11 Elbow 90 degree applied for gas pipeline pressure reach 0.7Mpa, and water-supply pipeline pressure reach 1.6Mpa;
  • PE80 SDR11 Elbow 90 degree applied for gas pipeline pressure reach 0.5Mpa, and water-supply pipeline pressure reach 1.25Mpa;
  • PE 100 SDR17.6 and SDR 17 Elbow 90 degree applied for gas pipeline pressure reach 0.4Mpa, and water-supply pipeline pressure reach l.OMpa;
  • PE80 SDR17.6 and SDR 17 Elbow 90 degree applied for gas pipeline pressure reach 0.3Mpa, and water-supply pipeline pressure reach 0.8Mpa;
  • The length of the welding pipe section can be lengthened according to the requirement.DN63-DN450 SDR11 SDR17 SDR17.6 PE Butt Fusion 90 Degree Elbow 0



d mm e(SDR11) mm e(SDR17) mm e(SDR17.6) mm L mm L1 mm
63 5.8 3.8 3.6 117 64
90 8.2 5.4 5.2 145 80
110 10.0 6.6 6.3 154 84
160 14.6 9.5 9.1 206 99
200 18.2 11.9 11.4 231 114
225 20.5 13.4 12.8 255 121
250 22.7 14.8 14.2 279 131
315 28.6 18.7 17.9 336 152
355 32.2 21.1 20.2 373 167
400 36.4 23.7 22.8 480 275
※450 40.9 26.7 25.6 525 285
